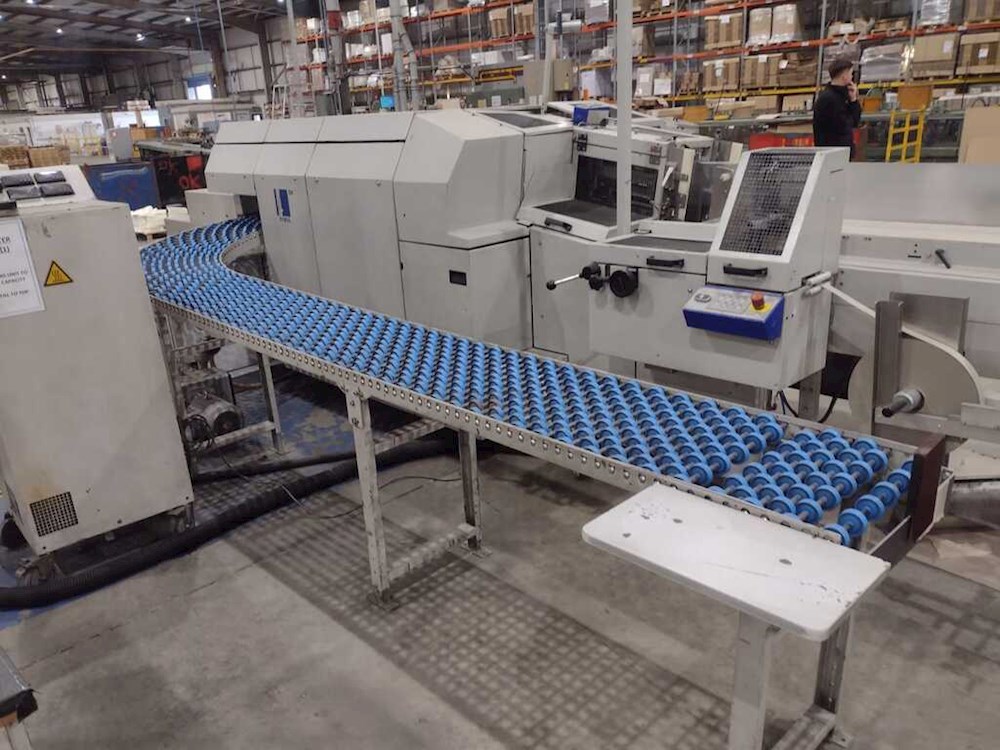

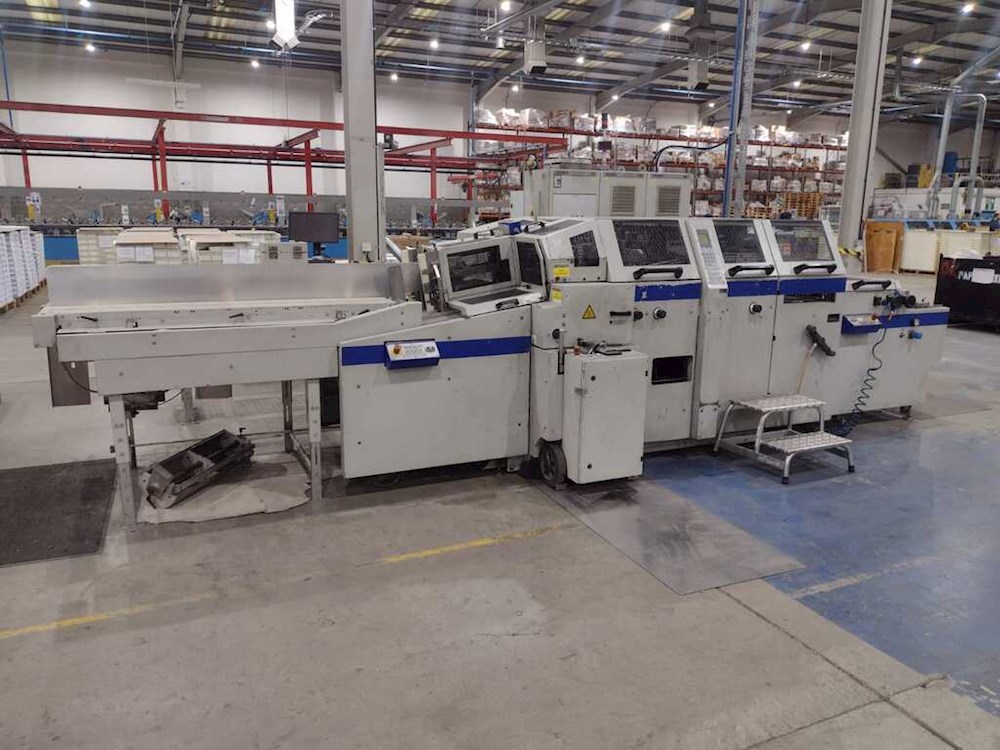

Kolbus DA 270

Kolbus DA 270

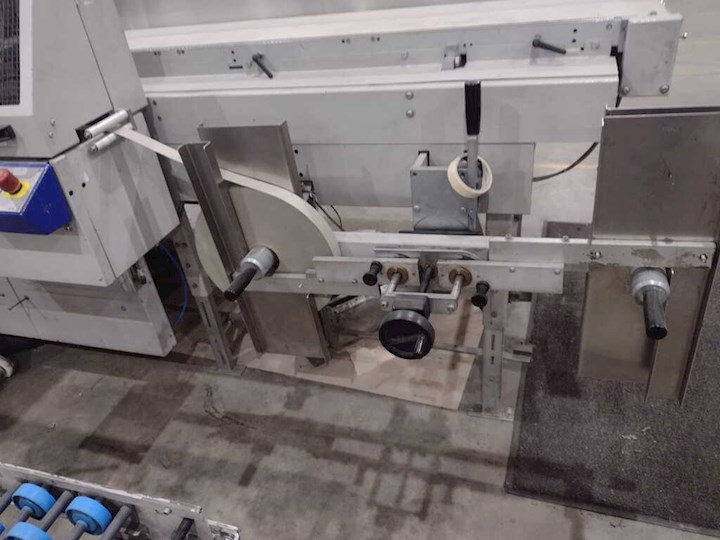

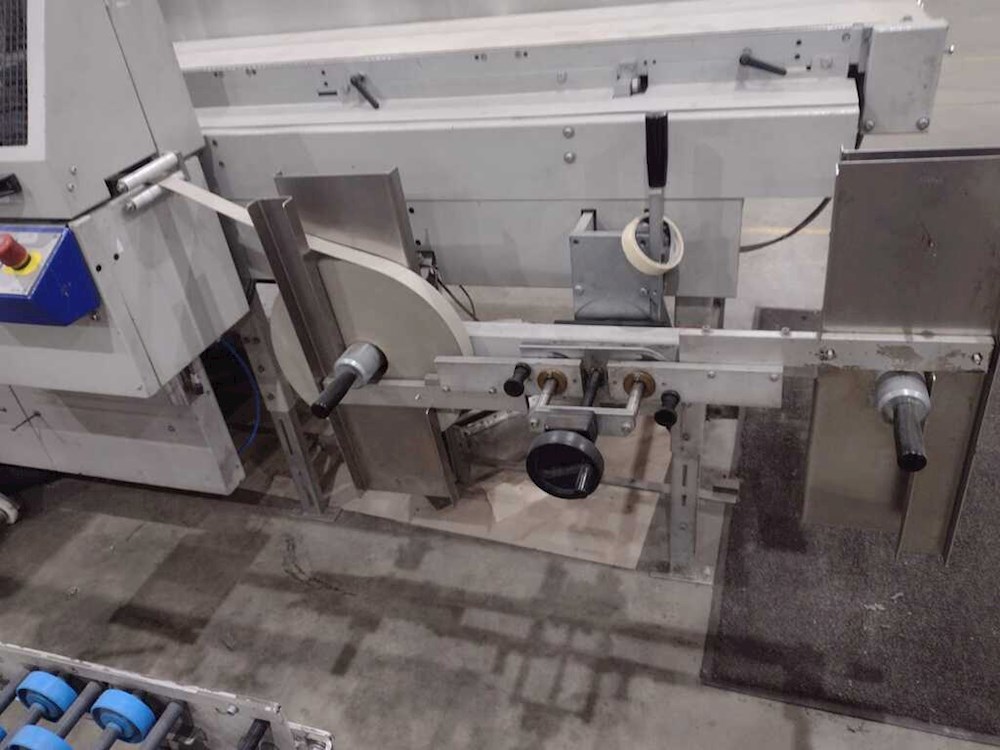

With Automatic measurement setting system, Carton feeding tape, Automatic cardboard feeder, Double roll holder with automatic feeding and cutting to make covers with round loin, Liner feeder, Gluing unit with pre-heated gelatin tank, Check the viscosity of the glue with viscometer and pump for water control, Roller press, Roll tape output with counter. Exit to the right with possibility to left.

Production of hardcover books, filing cabinets and table games

Technical specifications:

Maximum mechanical speed: Up to 65 cycles/min, Size range opened case (min) 205 x 140 mm, Size range opened case (max) 670 x 390 mm, Join width: 4 - 15 mm, Width between boards: 14 - 120 mm, Turn width, closed 8 - 15 mm

Cloth width: 223 - 708 mm

Cloth height: 130 - 428 mm

Boards: Thickness: 1 - 4mm, Width: 95 - 328 mm, Height: 140 - 390 mm
